peak & average & quasi-peak 차이

EMC/CISPER25 2024. 6. 9. 22:12 Posted by justrun89

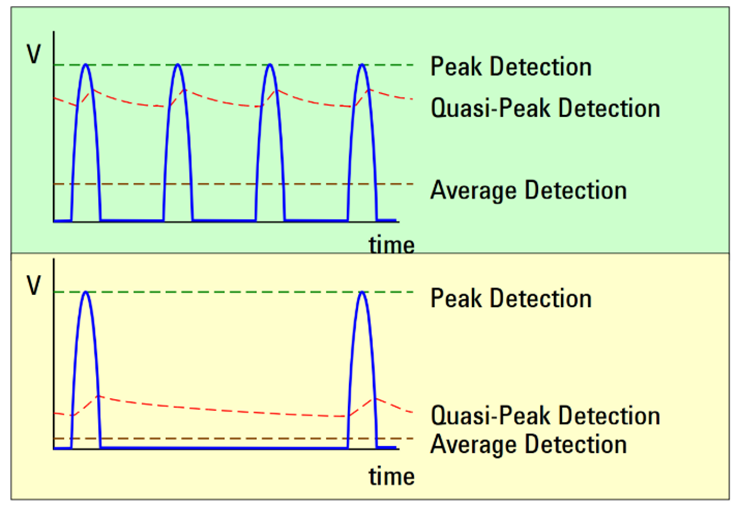

1. Peak

신호(노이즈)의 피크 진폭을 측정합니다. 충전 시 매우 짧은 시정수와 방전 시 매우 긴 시정수를 사용하여 피크 값을 표시합니다. 펄스 반복 주파수(PRF)와 무관하며 EMI 테스트 수신기의 입력에 공급되는 신호의 최대 진폭을 출력합니다.

2. QPK(Quasi Peak)

Quasi Peak Detector는 PRF(반복률)에 따라 신호의 가중치를 측정하며 특정 시간 내에 더 많은 펄스가 나타날수록 판독값이 높아집니다.  충전 및 방전 시상수와 미터 시상수는 CISPR 16-1-1에 설명된 대로 QPK-펄스 가중 특성으로 이어집니다.

3. 평균 검출기(AVG) AVG 검출기는 펄스 반복 주파수에 비례하여 나타냅니다











SMPS 개념 정리(1)

전자공학 2020. 2. 20. 21:53 Posted by justrun89

SMPS

https://ko.wikipedia.org/wiki/%EC%8A%A4%EC%9C%84%EC%B9%98_%EB%AA%A8%EB%93%9C_%ED%8C%8C%EC%9B%8C_%EC%84%9C%ED%94%8C%EB%9D%BC%EC%9D%B4

SMPS (Switching Mode Power Supply)는 전력용 MOSFET 등 반도체 소자를 스위치로 사용하여

AC전압을 DC전압으로 변환하는 장치이다.



SMPS 블록도

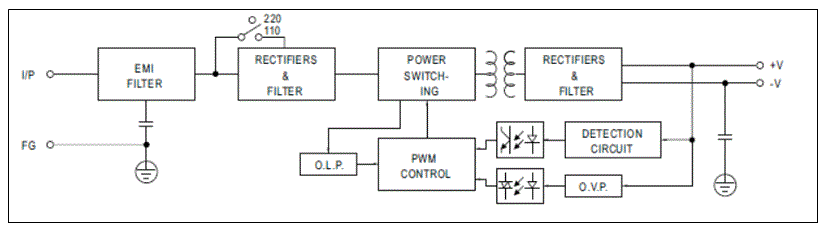

전원입력 -> EMI 필터 -> 정류 -> 트랜스(1) -> 트랜스(2) -> 정류 -> 출력

2차측 전압 검출 -> OVP(Over Voltage Protection) or OCP(Over Current Protection)



SMPS EMI 필터

SMPS에서 발생하는 노이즈는 도선을 타고 전달하는 전도 노이즈 공기를 통해 방사되는

방사 노이즈로 구분된다. 세부적은 구분으로는 CM 노이즈 와 DM 노이즈로 구분되며,

EMI 필터는 이러한 DM노이즈와 CM노이즈 제거용으로 사용된다.



정류 및 평활

브릿지다이오드 + 평활 캡을 이용하여 AC파형을 평활한다.



정류용 브리지 다이오드 선정 방법

Bridge Diode 2개씩 짝지어서 ON / OFF 되며 OFF시 다이오드에 역방향 전압이 인가된다.

따라서, 역방향으로 얼마만큼의 전압을 견딜 수 있는지가 중요한 요소이다.

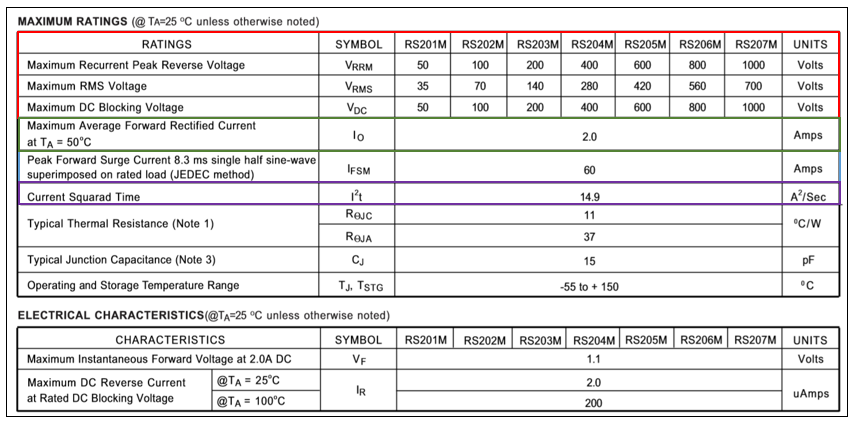

다이오드가 역방향으로 견딜 수 있는 최대 전압 = V(RRM)

최대전압을 기준으로 하므로 AC 220V PEAK = V(RMS) X2  = 220 X2  = 311V

이때 전압마진을 고려하여 일반적으로 600V 정도에 정격전압을 가지는 다이오드를 선정한다.

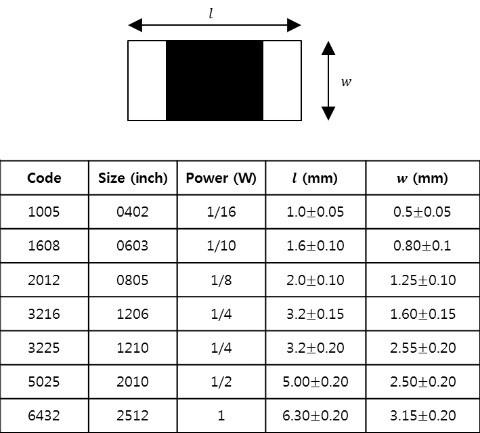

저항 SIZE - WATT (사이즈 - 와트) 환산표

전자공학 2020. 2. 12. 20:12 Posted by justrun89

78K/0 어셈블리어 명령어 정리(1)

임베디드 2019. 8. 10. 22:02 Posted by justrun89

1. BZ

Conditional Branch with Zero Flag (Z = 1)

When Z = 1, data is branched to the address specified by the operand

When Z = 0, no processing is carried out and the subsequent instruction is executed

- 만약 (Z = 1) 인 경우 분기(Branch)하며,  그렇지 않을 경우 다음에 오는 명령어를 실행한다



2. BR

Unconditional Branch

This is an instruction to branch unconditionally

- 조건없이 무조건 해당 주소로 분기



3. BC

Conditional Branch with Carry Flag (CY = 1)

When CY = 1, data is branched to the address specified by the operand.

When CY = 0, no processing is carried out and the subsequent instruction is executed.

만약 (CY = 1) 인 경우 분기(Branch)하며, 그렇지 않을 경우 다음에 오는 명령어를 실행한다



4.BT

Conditional Branch by Bit Test (Byte Data Bit = 1)

If the 1st operand (bit) contents have been set (1), data is branched to the address specified by the 2nd operand.

만약 해당 비트가 1 인 경우 분기(Branch)하며, 그렇지 않을 경우 다음에 오는 명령어를 실행한다

Ex   BT FE47H.3, $55CH ;    When bit 3 at address FE47H is 1,   data is branched to 055CH
